SPECIFICATIONS

Brand Name: TWO TREES

CNC or Not: CNC

Certification: CE

Condition: New

Controller: GRBL

High-concerned chemical: None

Model Number: TTC450PRO

Origin: Mainland China

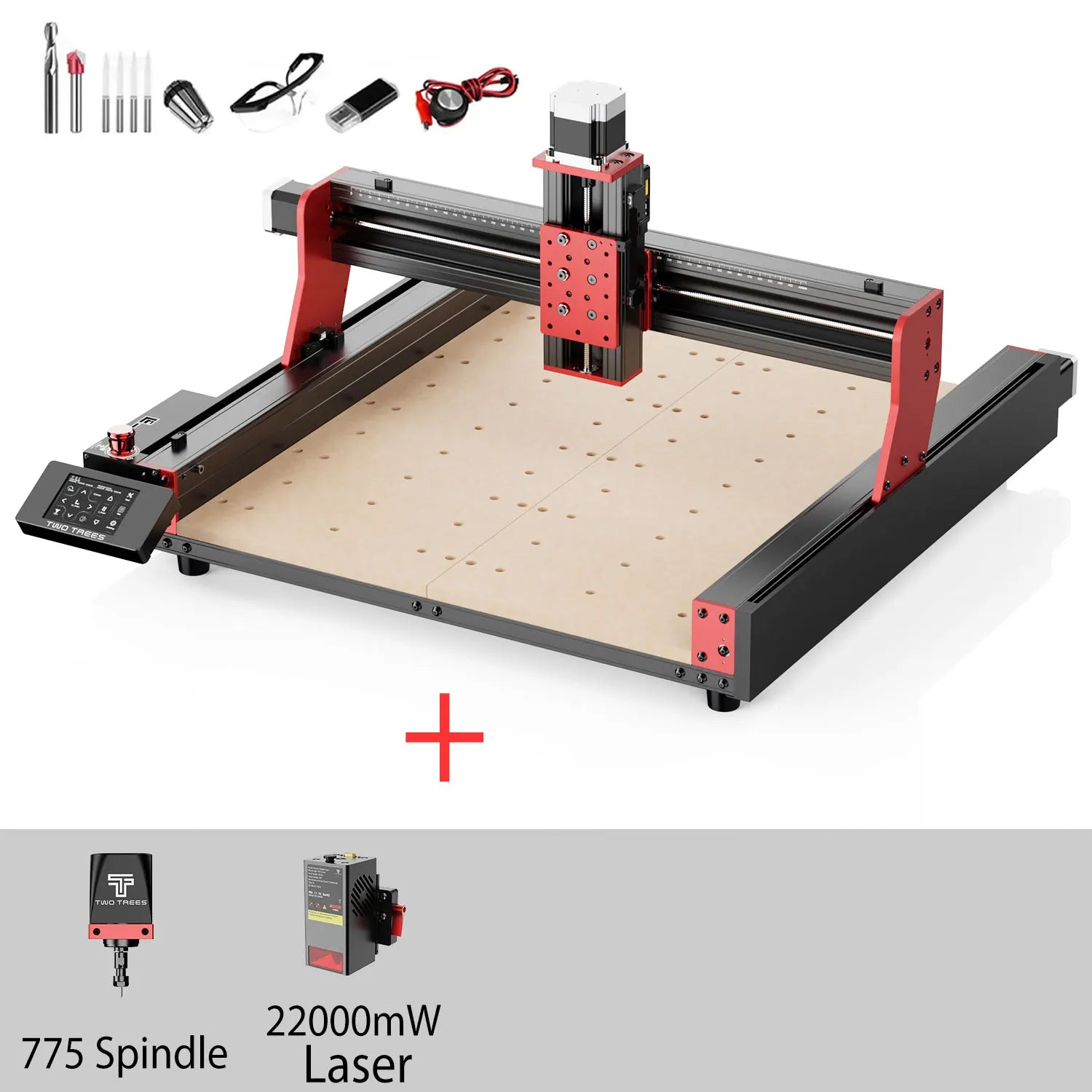

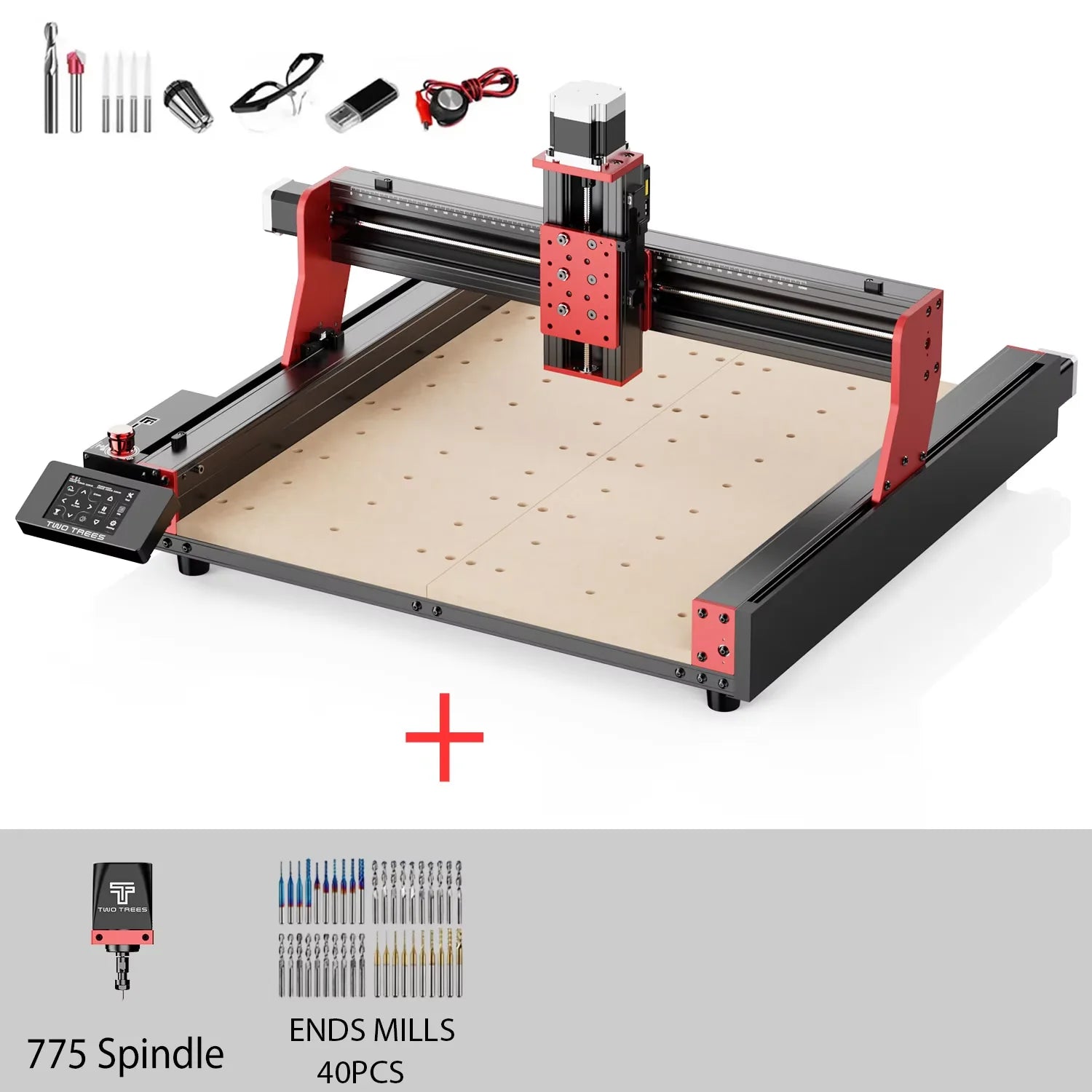

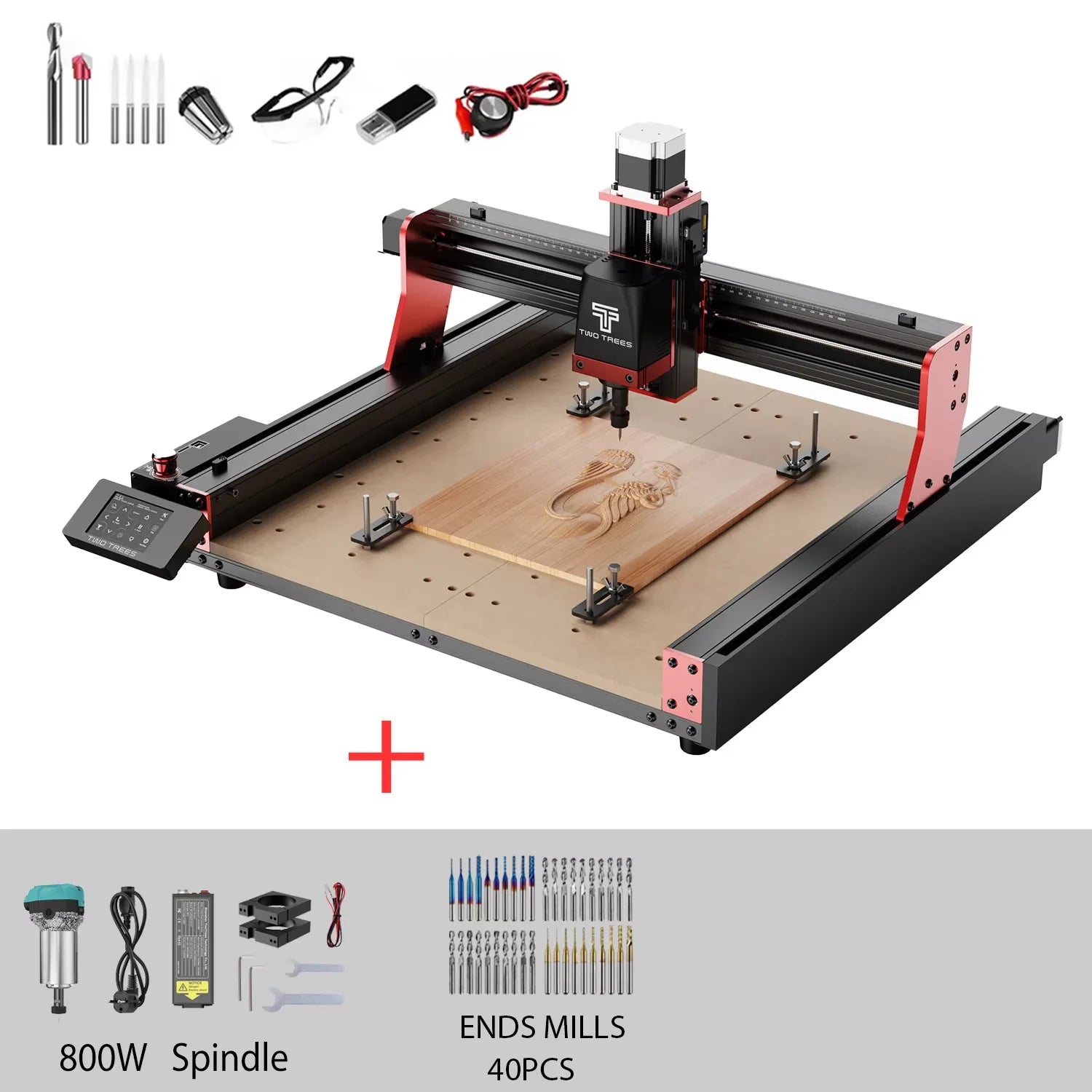

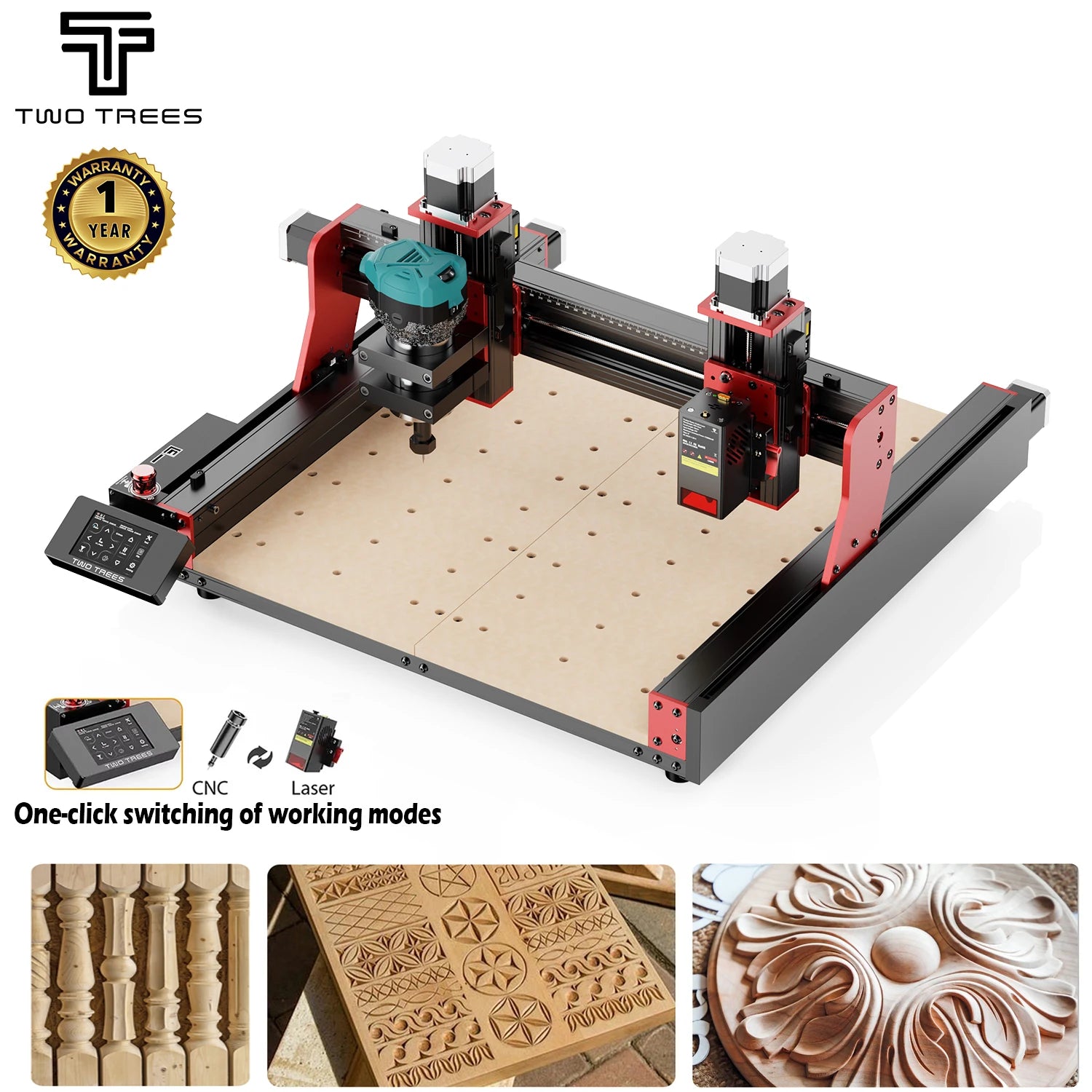

TwoTrees TTC450Pro CNC Machine 4-Axis Metal Cutting Machine For CNC Router Machine And Laser Engraving Cutting Wood GRBL ControlProduct characteristics

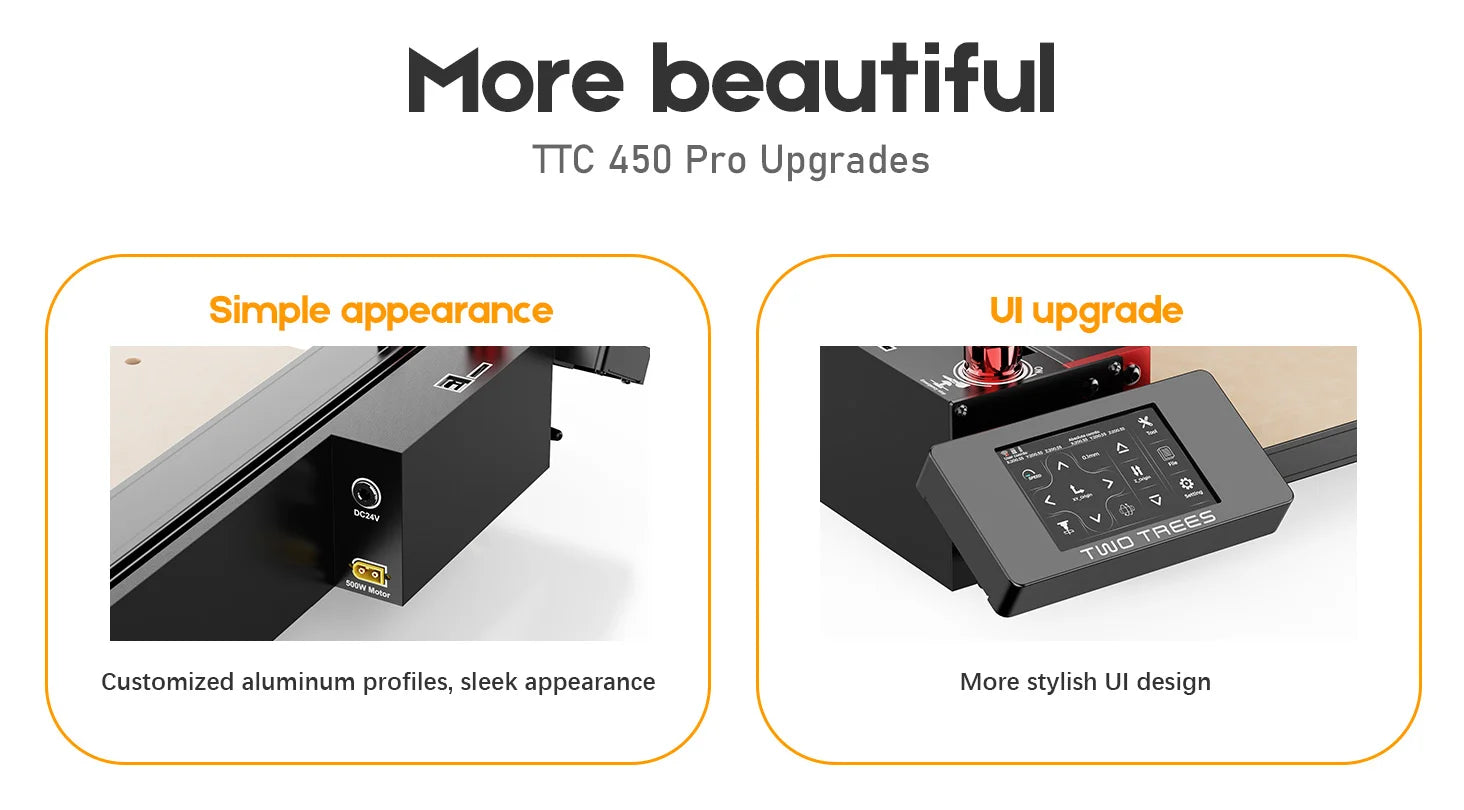

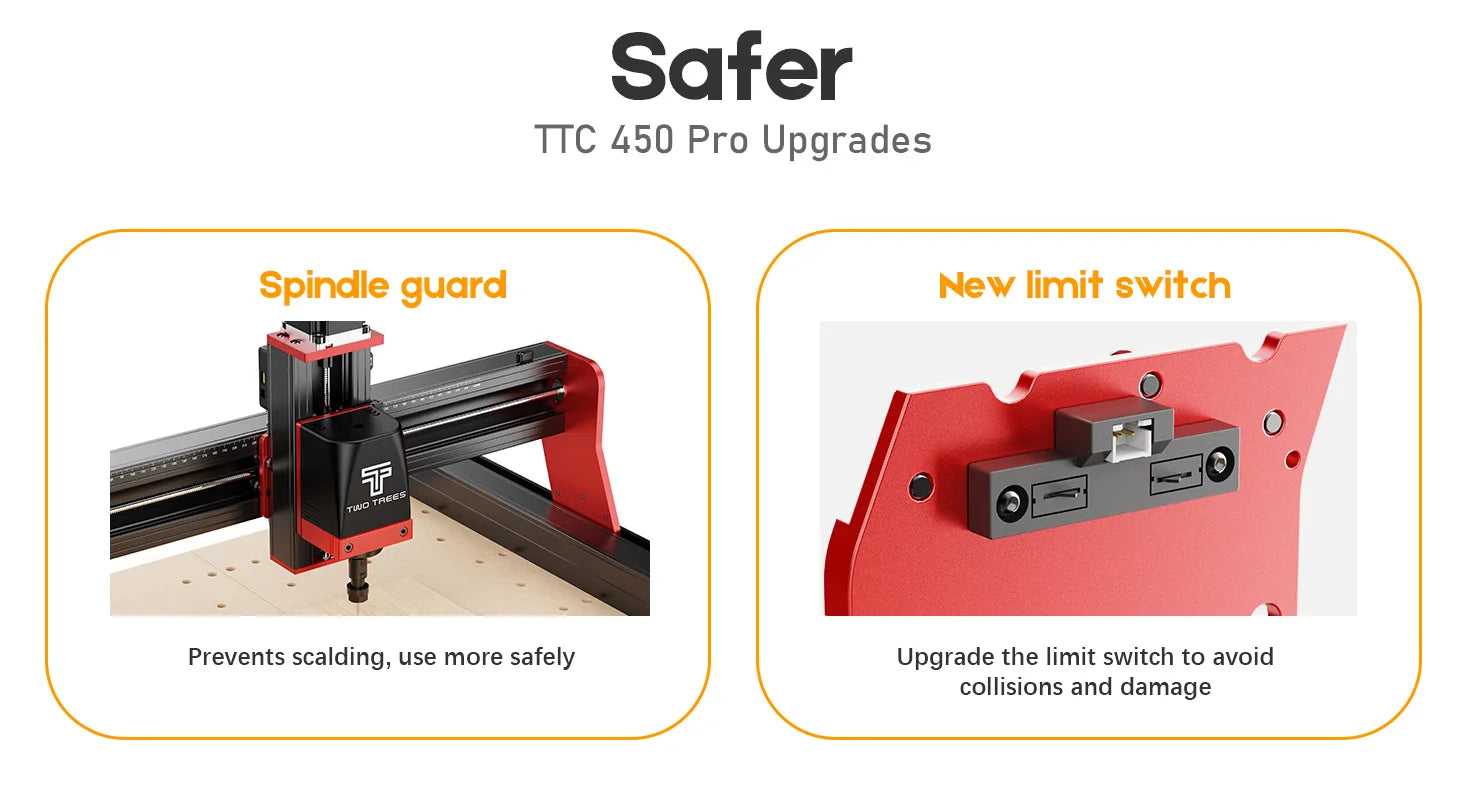

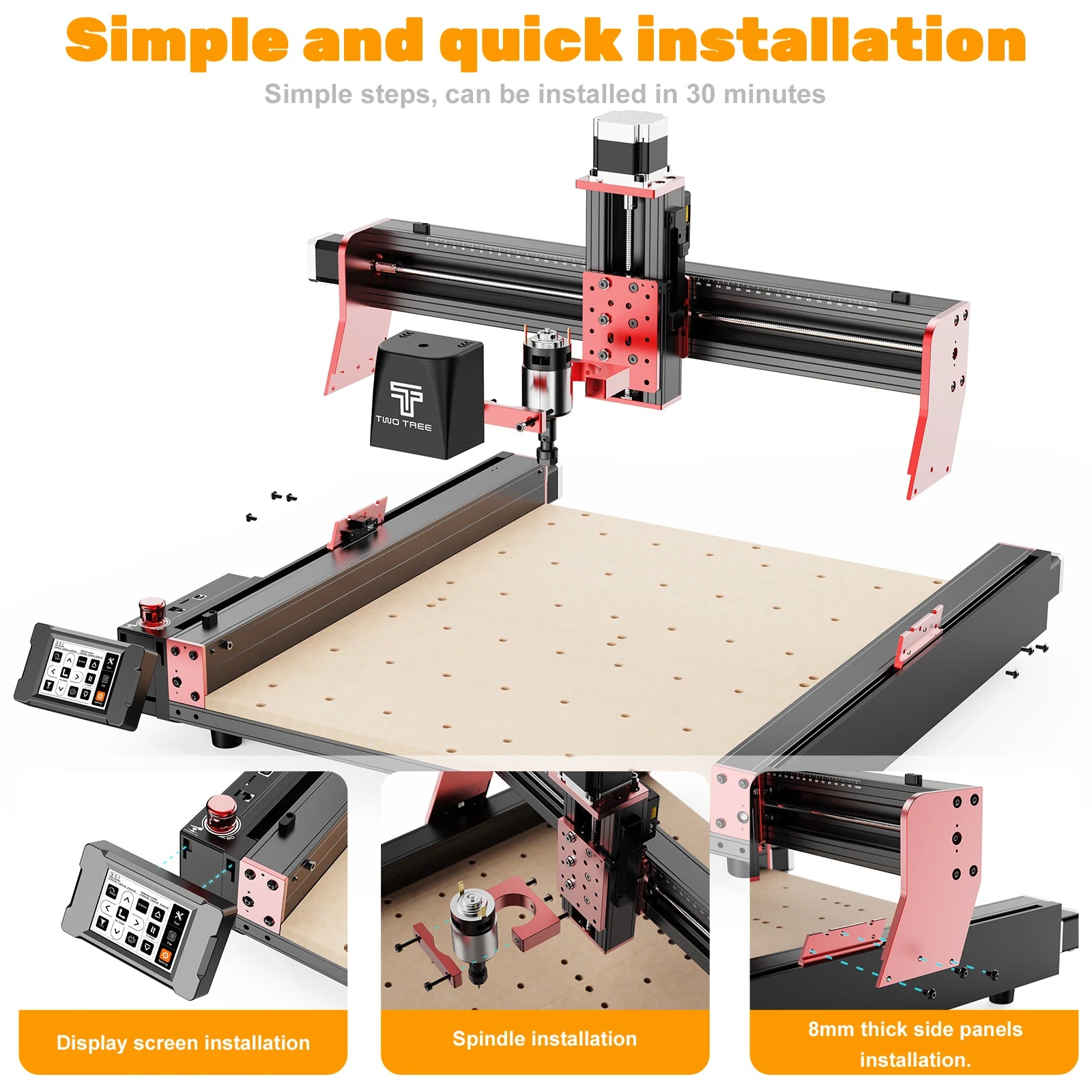

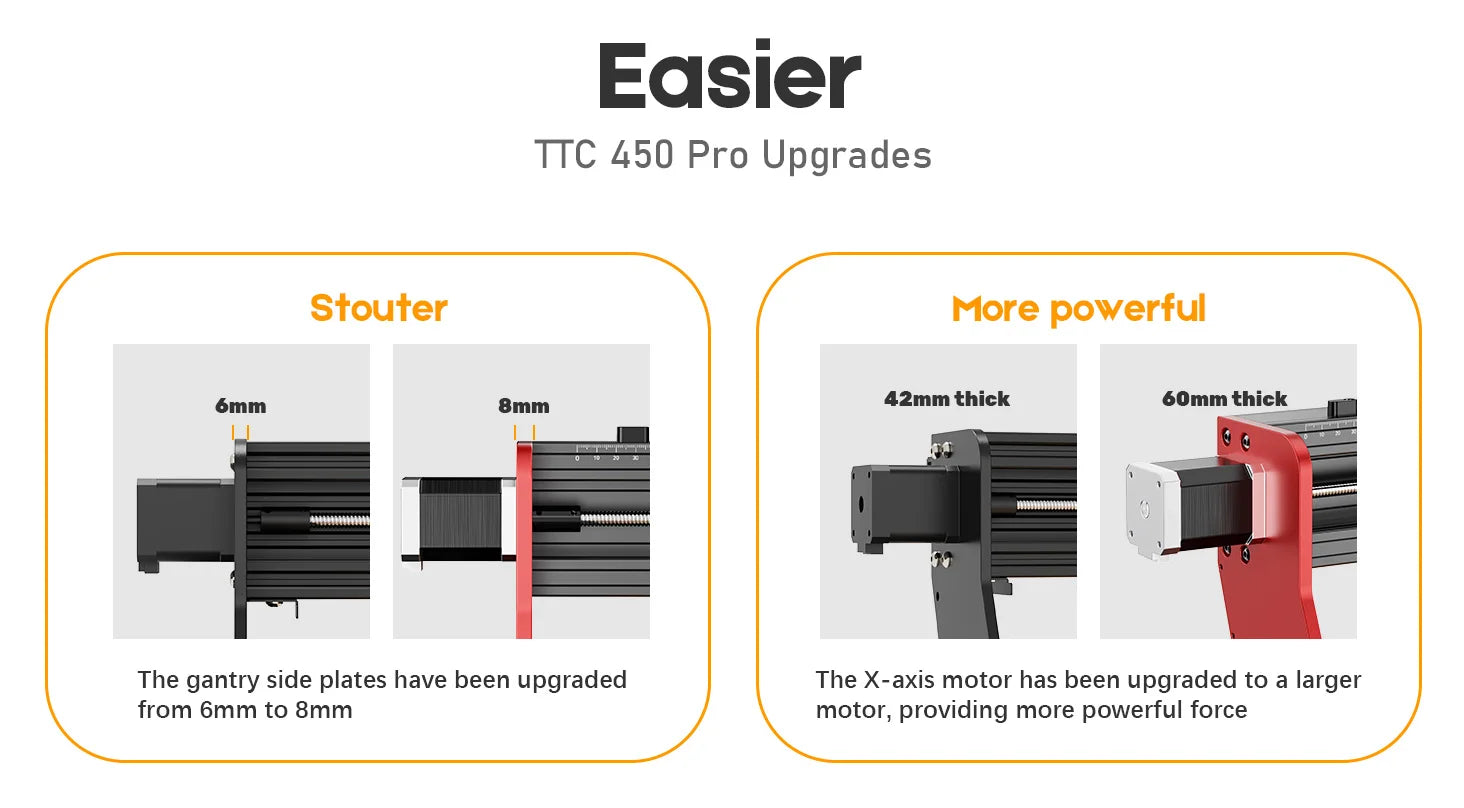

Structure Upgrade: XYZ limit switches are fully upgraded to ensure safe operation, while the X-axis CNC plate is thickened to 8mm to enhance durability and stability.

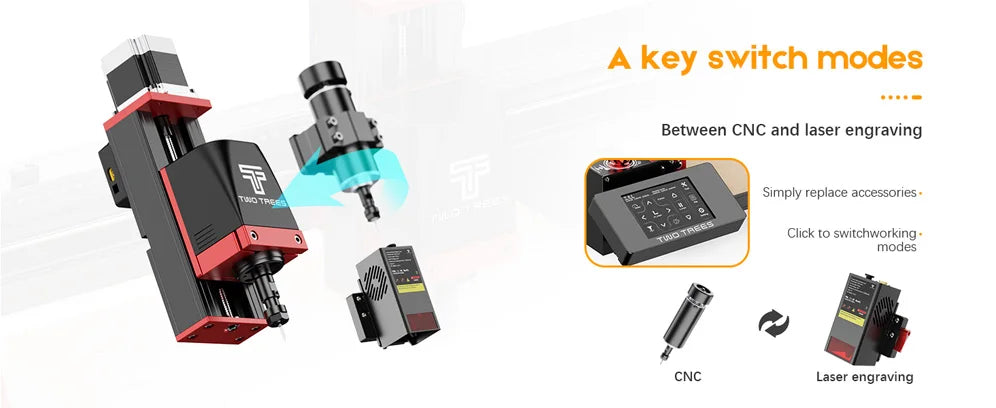

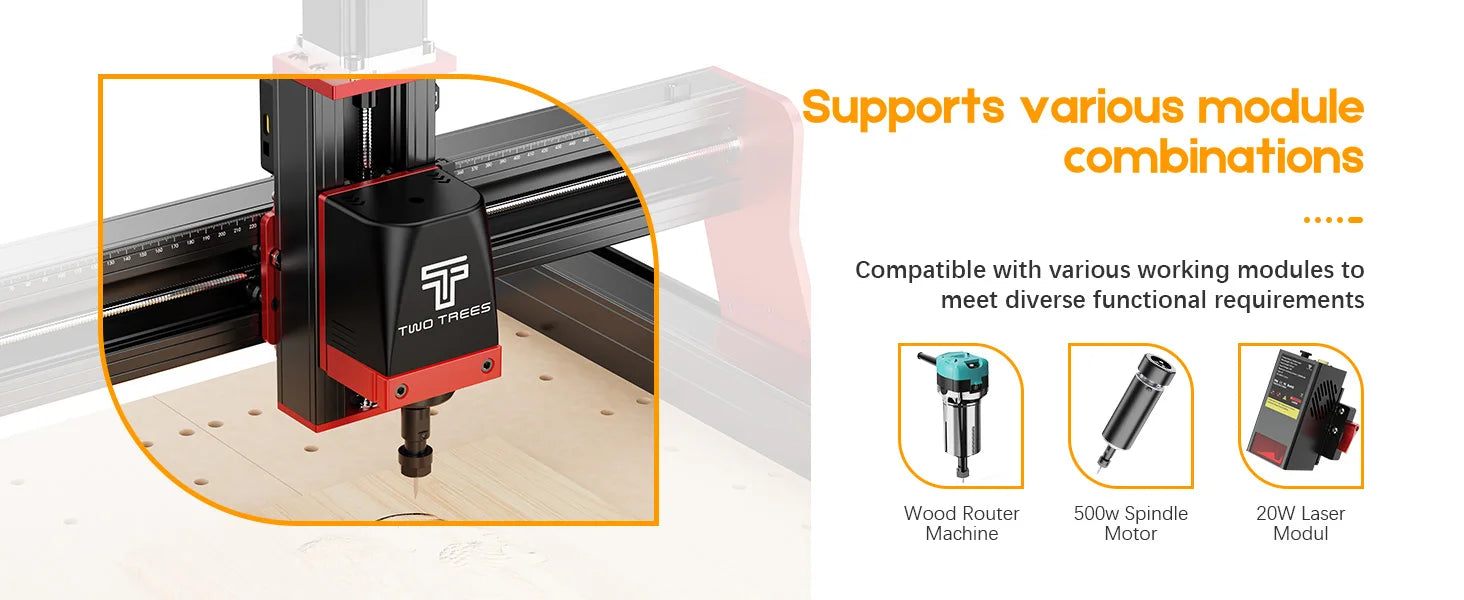

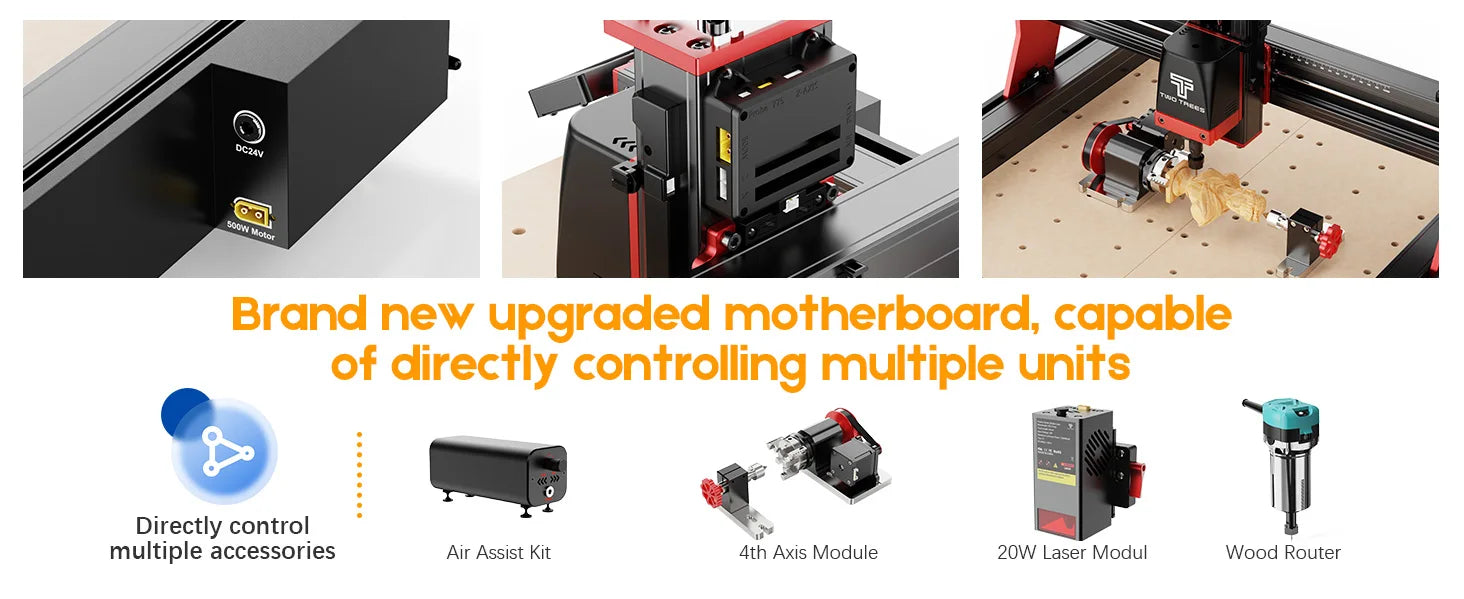

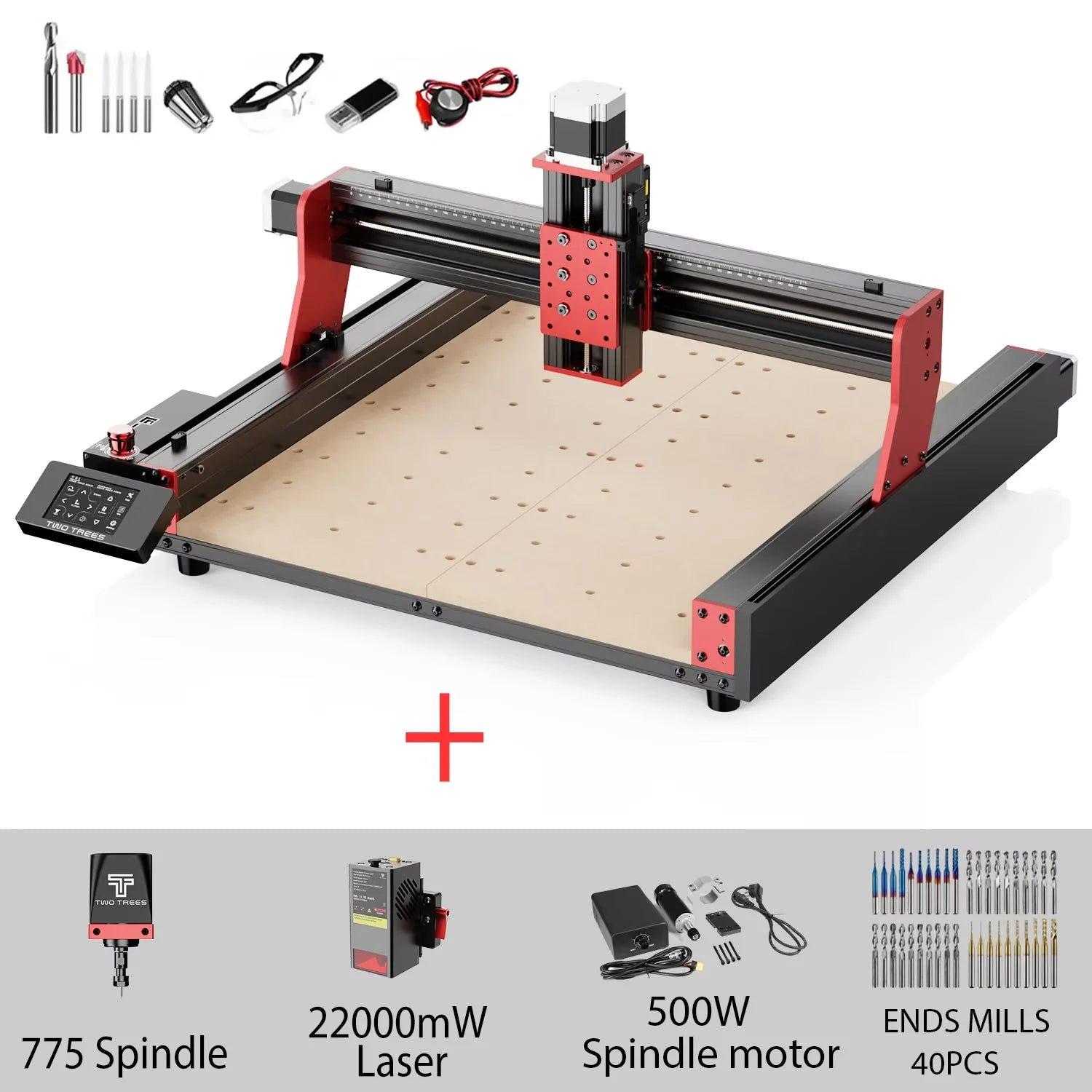

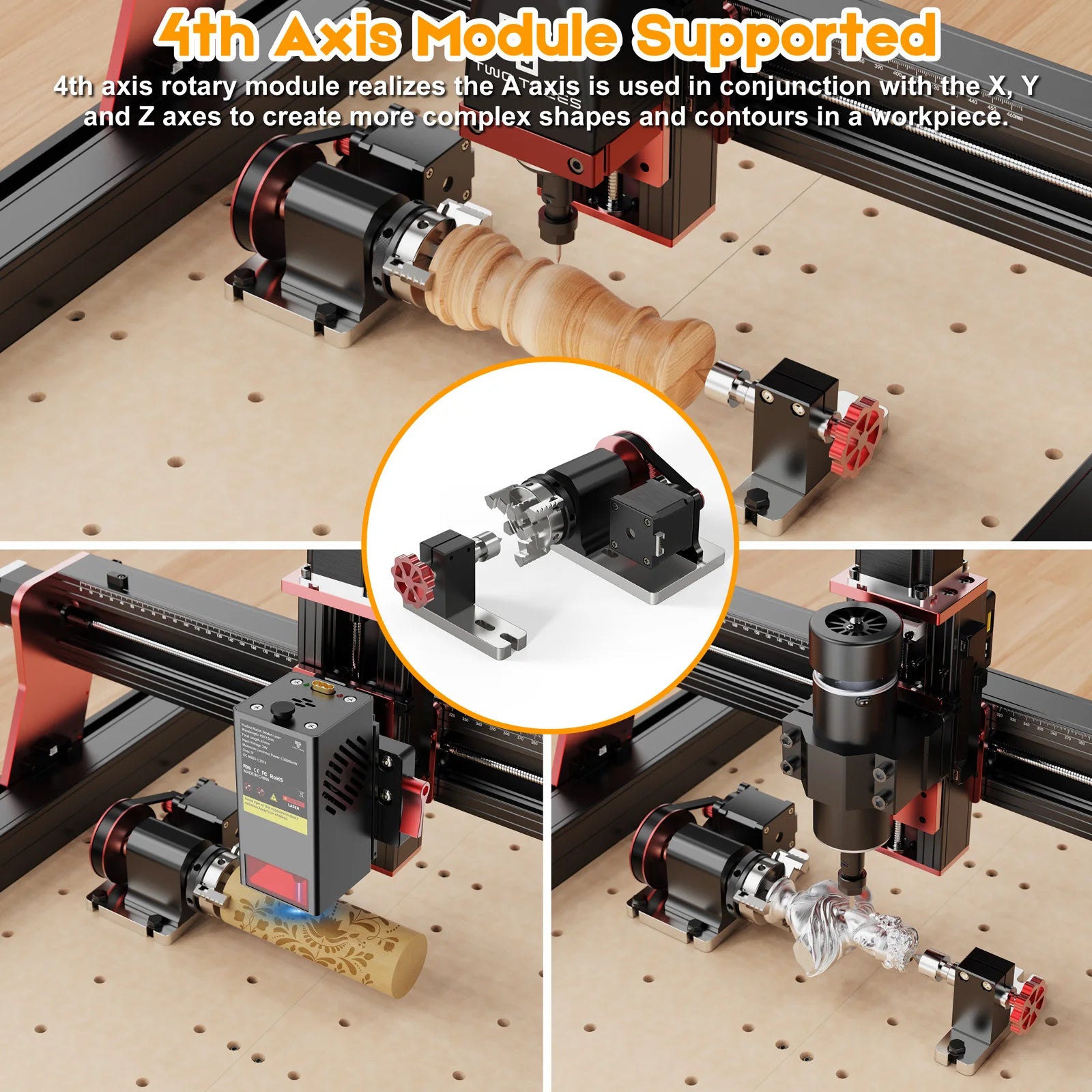

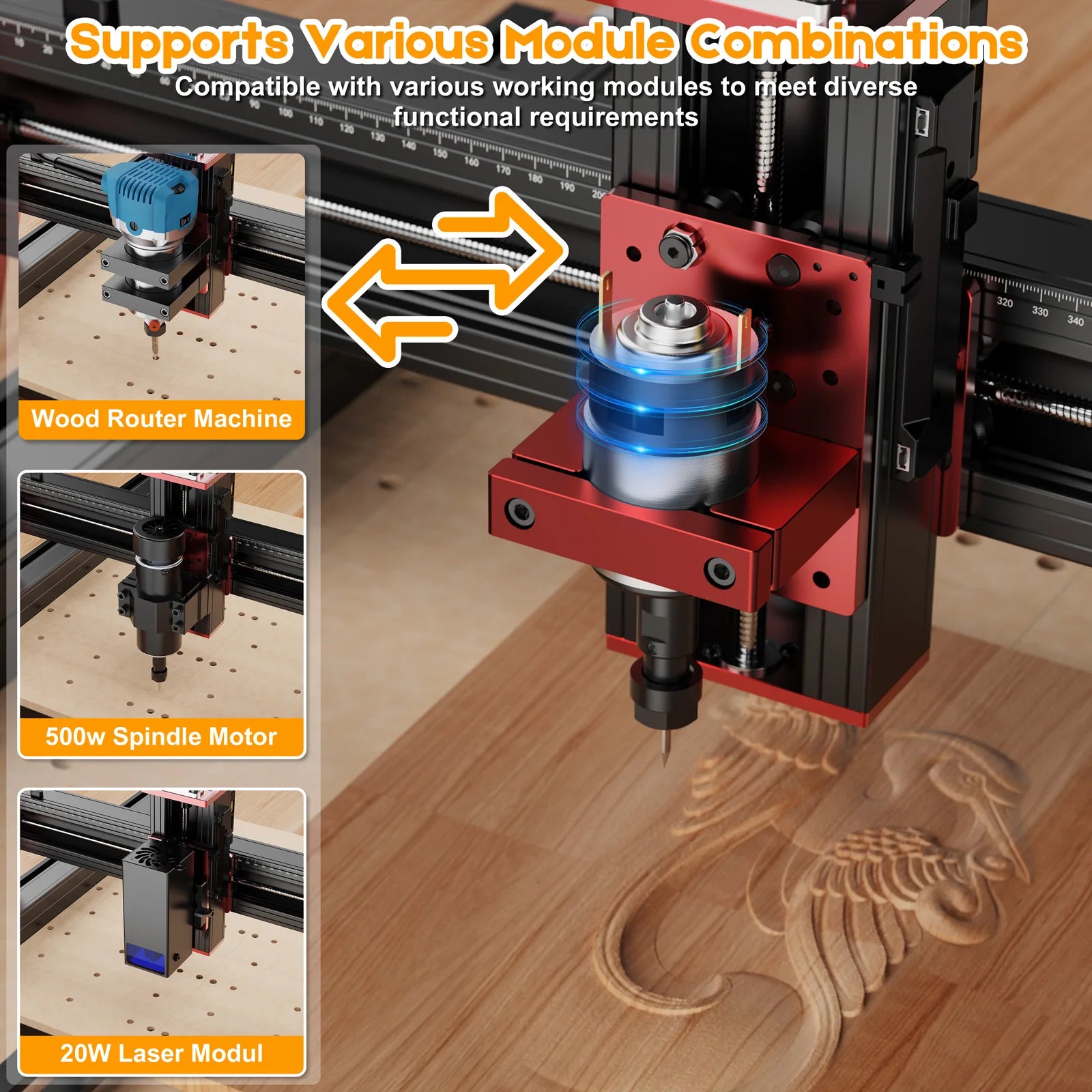

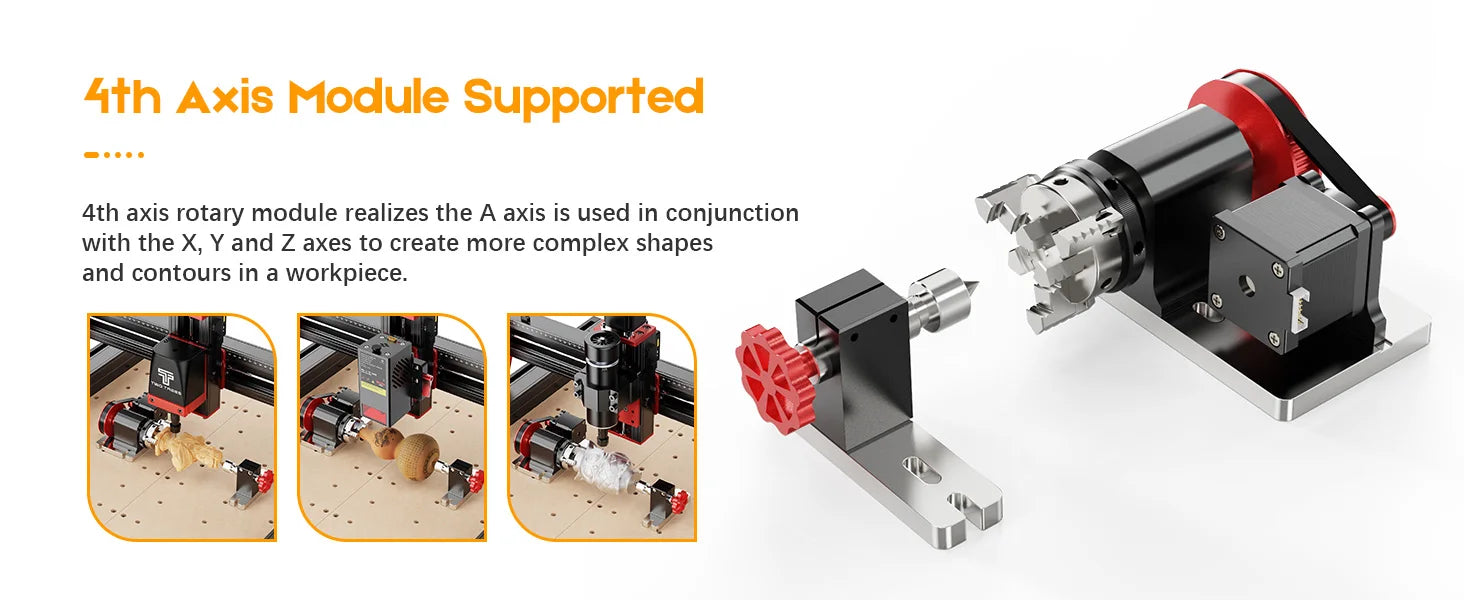

Compatibility Upgrade: The module of the TTC450 PRO CNC machine has been upgraded to compatible more kit. It supports not only the 4th-axis rotary module kit, 500W Spindle, but also the trimmer router,20W lasermodule. With these kits, your woodworking creations will be much more manageable!
Upgrade: The upgraded X-axis motor 17HS6001 provides more powerful torque and ensures stable operation.

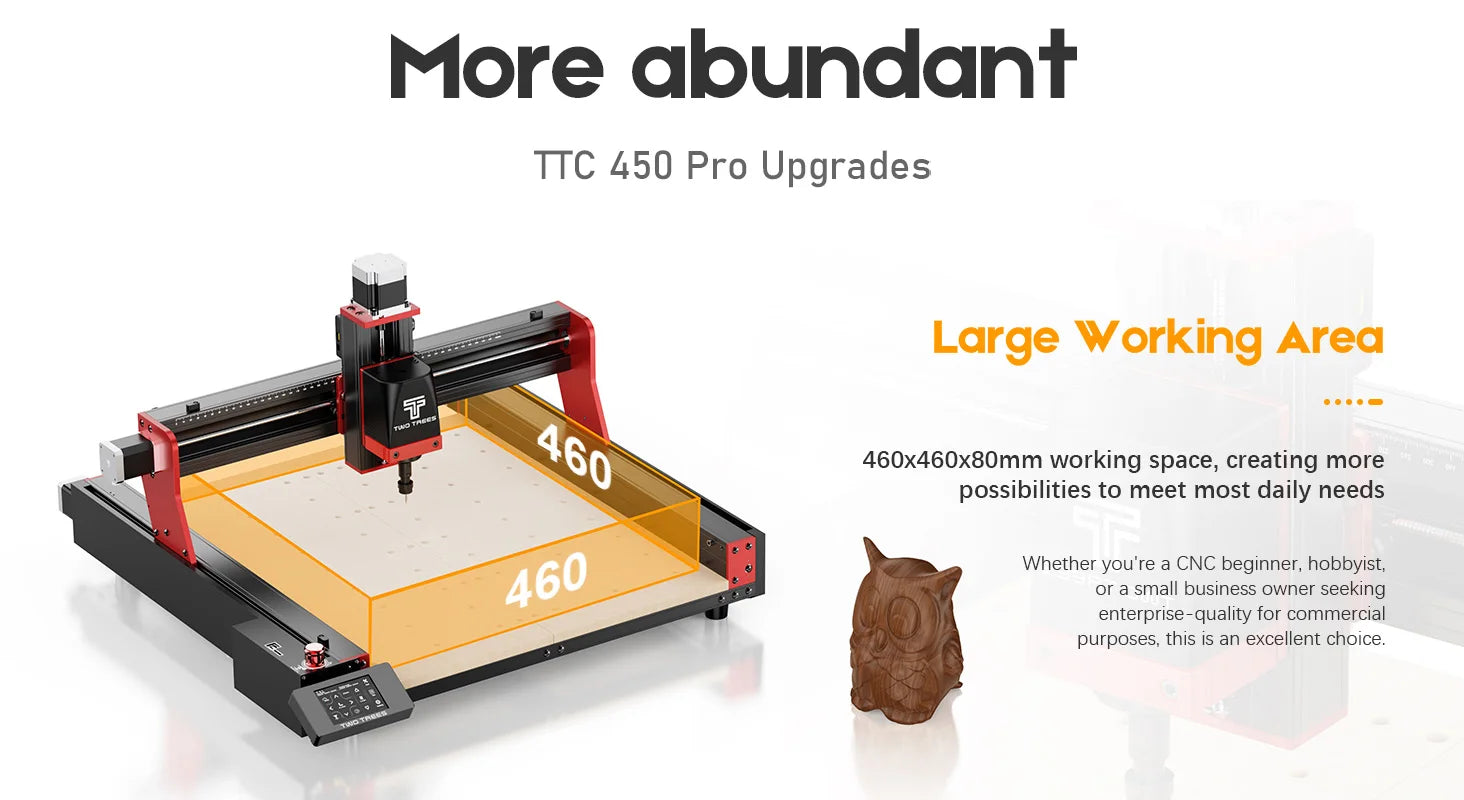

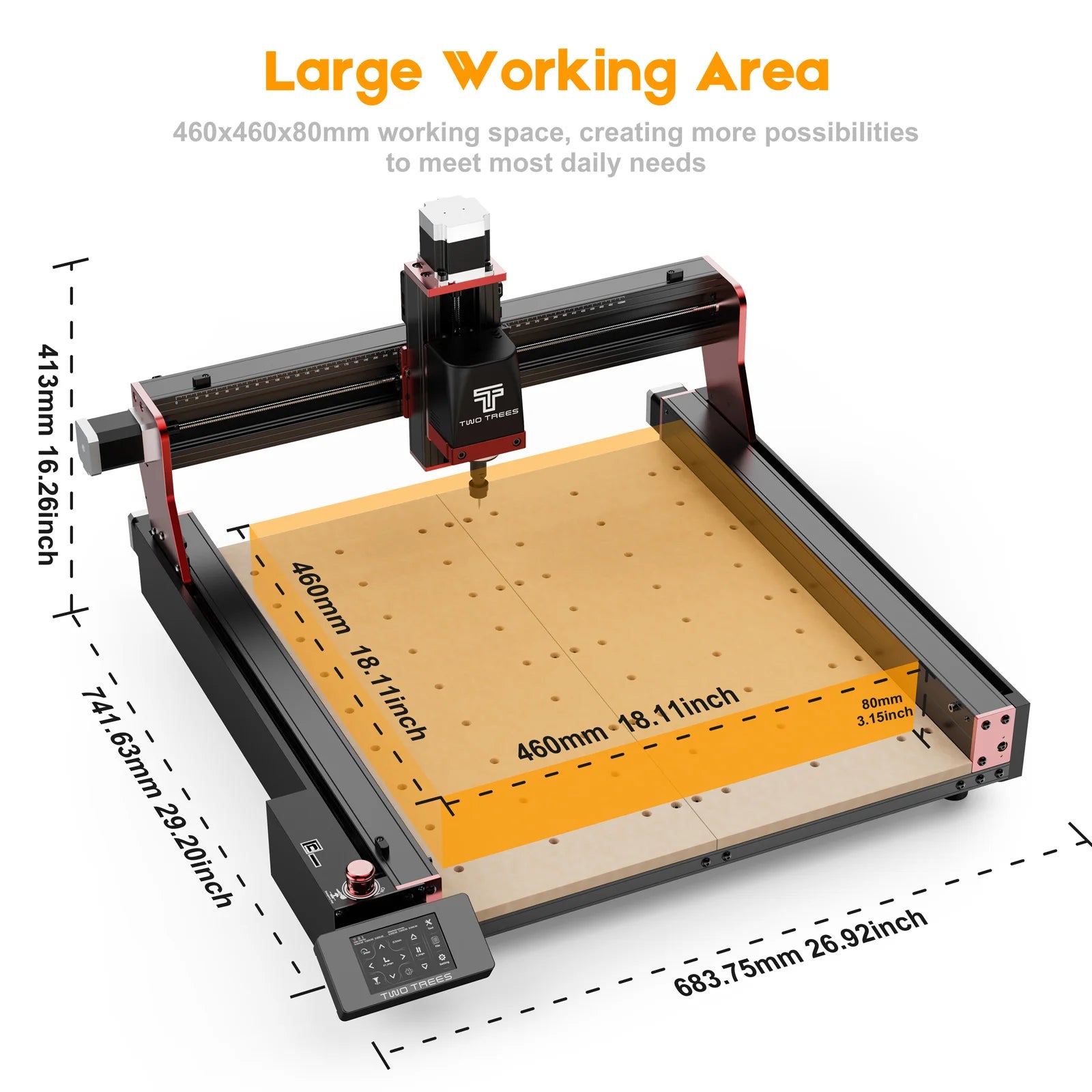

Large working areaThe active working area is 18.10” x 18.10” x 3.14” (460 x 460 x 80mm). It is large enough for daily woodworking

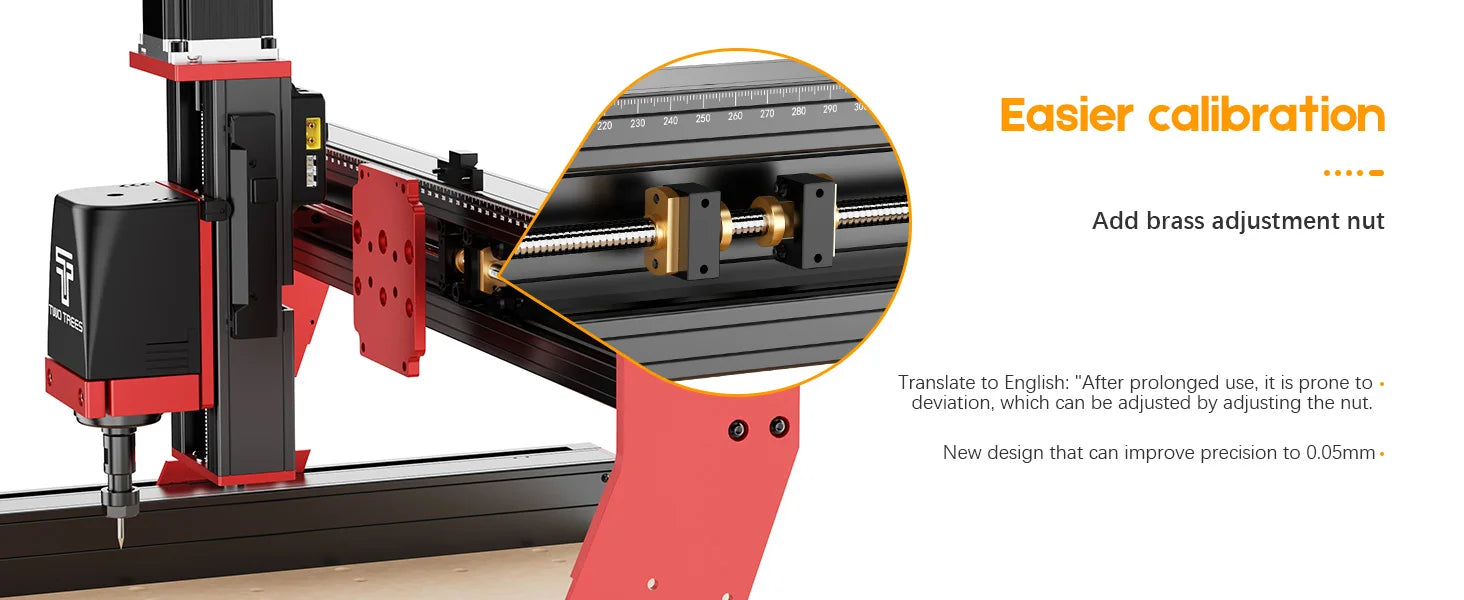

Precision Dual Brass Nuts - Smooth and Accurate Movement.

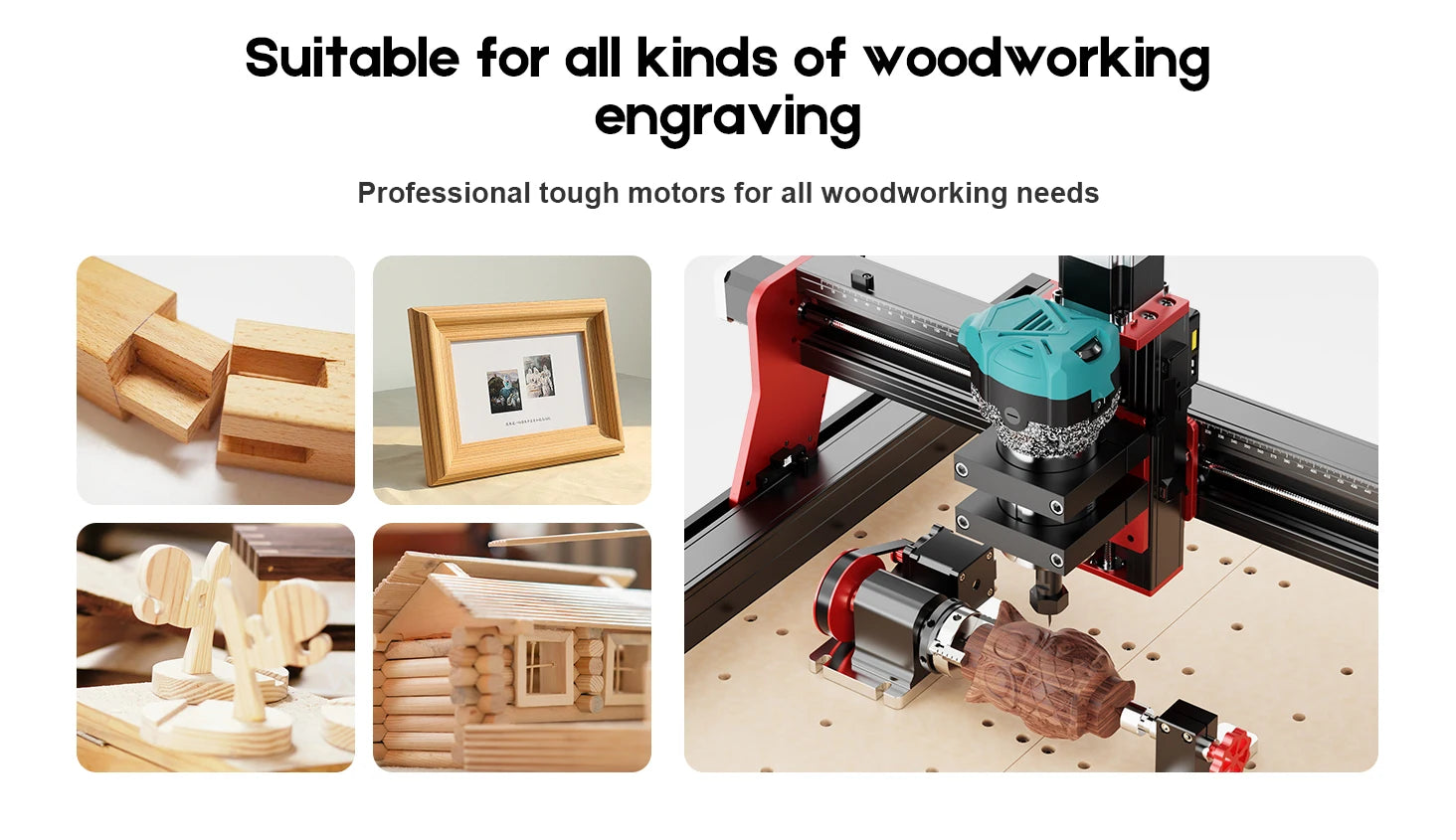

Wide Application: The TTC45 PRO CNC Wood router is compatible with GRBL software and supports systems such as windows XP/7/8/10/11 and Mac OS. It is suitable for engraving and carving stainless steel, wood, aluminum, brass, plexiglass, leather, PCB, MDF, acrylic, resin, nylon, carbon fiber, PCB, PVC, and more.

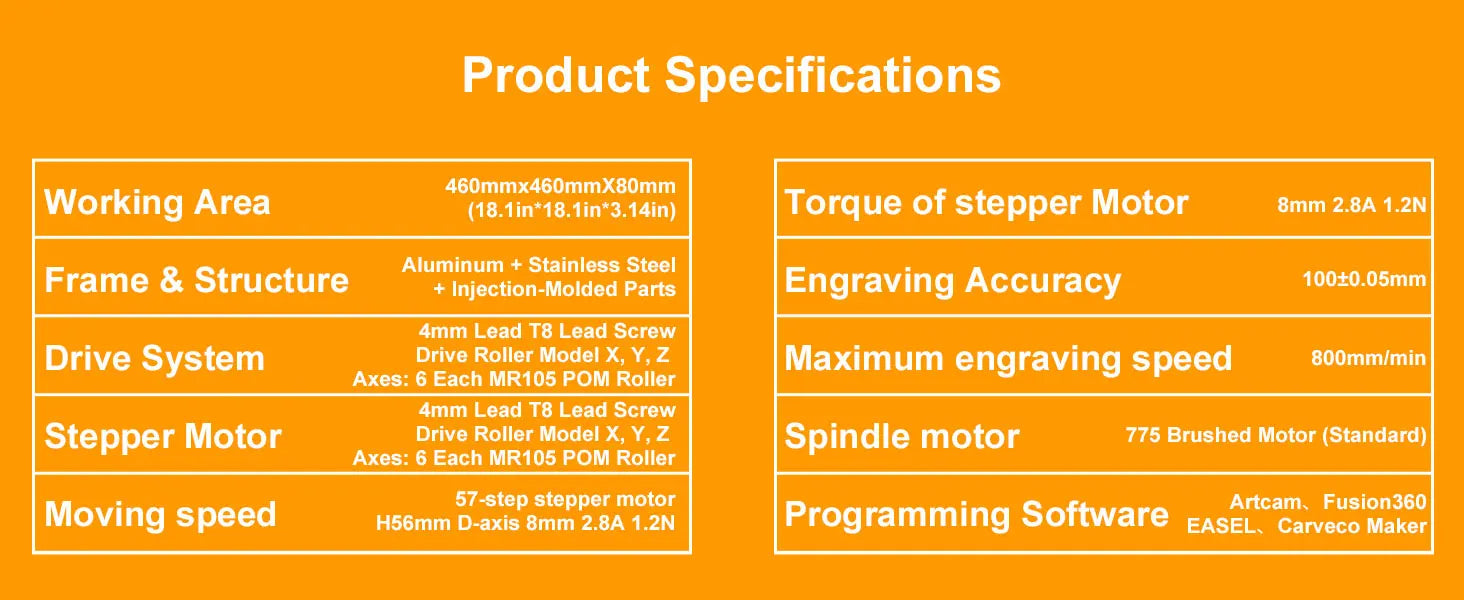

Model:TTC450 Pro

Color:Black & red

Machine material:Aluminum Profle+ Plastic

Leadscrew Size & Type:T8 2mm pitch,4mm lead 5 start acme lead screw

Height adjustment method:Anpassung des Hubmoduls(automatisch)

Machine size:742*689*413mm

Engraving size:460*460*80mm(18.1in*18.1in*3.14in)

XY axis positioning accuracy:0.05 mm

Stepper motor:A4988,1.3A/17HS8401S,NEMA23 20mN.m

Engraving precision：±0,05

Engraving speed:800 mm/min

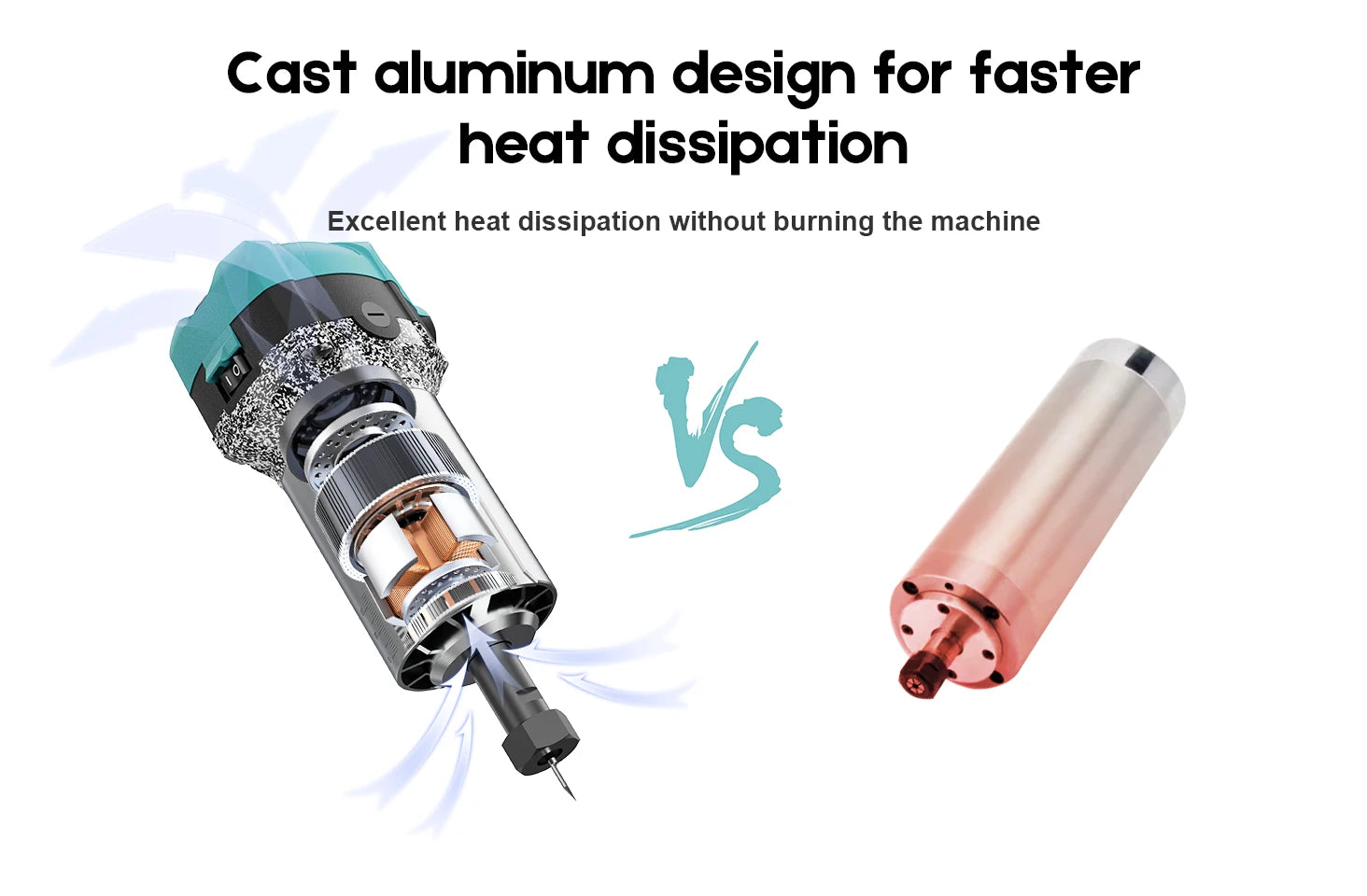

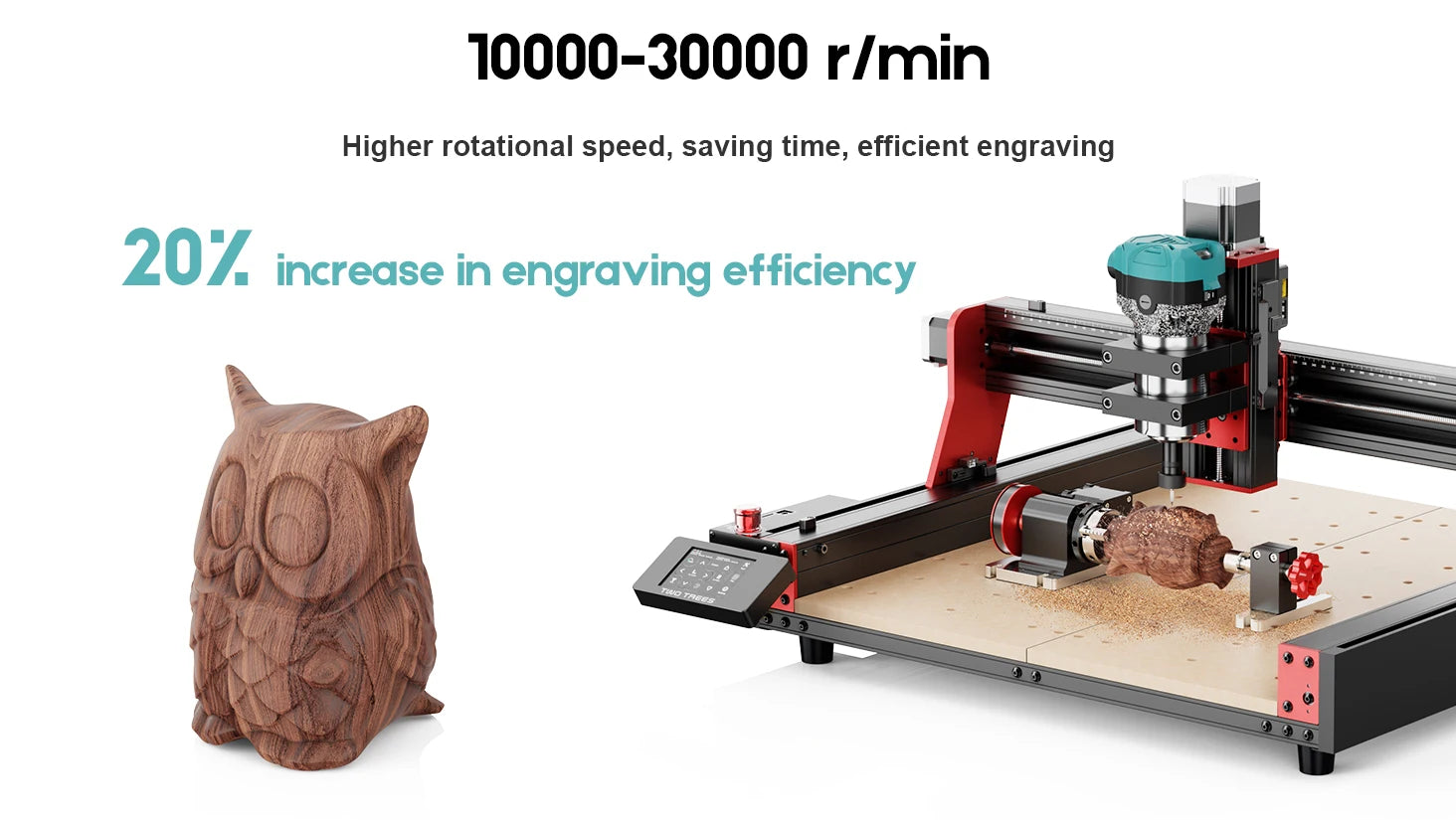

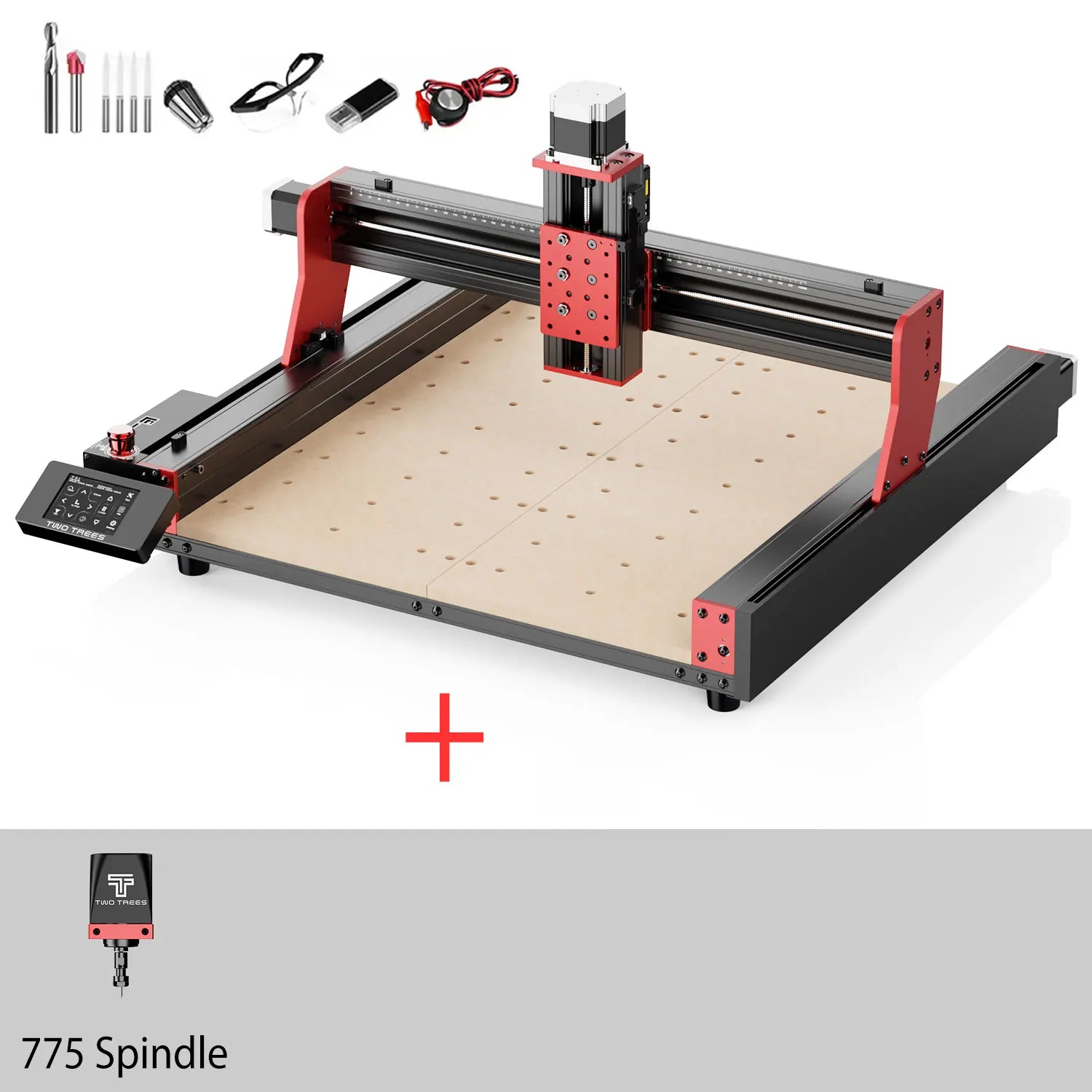

Spindle:80V.8000RPM / 500W.12000RPM
